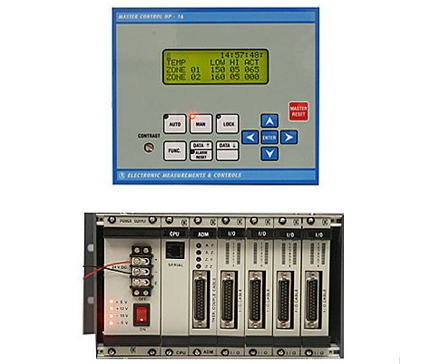

Programmable Logic Controller (PLC HP-14)

Specification for Programmable Logic Controller HP-14:

  • No. of Temperature Channels : Max. 8
  • No. of Control Output : Max. 32, 24V/2A Transistors.
  • Counters : Upto 99999999 counts,
  • Temperature Range : 0 to 400°C.
  • Type of Thermocouple : Fe/Const ‘J’ type or K type
  • Accuracy of Indication : ± 1°C, ± 1 digit.
  • No. of Timer : 50
  • No. of Limit Switches and Hand Control : Max. 32, 24 V DC type.Switches.
  • Control Accuracy : Typical 1%.
  • LCD Display : 20 Char. 4 Line LCD Display.
  • Size of Hand Control Unit : 130 x 150 mm.
  • Timer’s Range : 00.00 to 99.99 second.
  • Control Action : Time proportional.
  • Ambient Compensation : Automatic.
  • Linearisation of Thermocouple : By software.
  • Accuracy and Repeatability : ± .01%.
  • Time Base : Quartz crystal.
  • Counting Mode of Timer : Down counting type.
  • Sequence of Operation : As per customers requirement.
  • Counter Pulse : Internally from timing sequence.
  • Operating Temperature : 0-50°C
  • Supply of Voltage : 24VDC ± 15%
  • Dimensions : Rack Mountable.
  • Operating Mode : Auto & Manual.

Other Features:

  • Exclusion of any temperature channels and timers from sequence of operation.
  • Non volatile memory for protecting programmed parameters during power failure.
  • Key locking to prevent unauthorized access of keyboard operation.
  • Testing of all Input, Output devices, such as Output Solenoids, Limit Switches, Thermocouple Inputs, Keyboard & Displays.
  • Clear text for all Timers, Inputs, Outputs, for early programming & operation.
  • Programming of all parameters through keyboard.
